SPECIFICATIONS

2.4G Wi-Fi Transmission Rate: 300 Mbps

5G Wi-Fi Transmission Rate: 867Mbps

5ghz outdoor: long distance outdoor wifi antenna

Antenna Type: Fixed

Application: Outdoor

Brand Name: wonlink

Certification: CE,FCC

Choice: yes

Frequency: 5 GHz

Frequency Band Class: Dual-Band

High-concerned chemical: None

LAN Ports: 1

Max. LAN Data Rate: 1000Mbps,1200Mbs

Number of USB Interfaces: None

Origin: Mainland China

Outdoor power station: access point wifi

Outdoor wifi antenna: outdoor cpe

Package: Yes

Products Status: Stock

Recommended Uses: Business

Standards And Protocols: Wi-Fi 802.11b,Wi-Fi 802.11g,Wi-Fi 802.11n,Wi-Fi 802.11ac

Support Mesh: Not Supported

Supports WDS: Yes

Supports WPS: Yes

Type: WireLess

WAN Ports: 1 x10/100/1000Mbps

Wi-Fi Supported Frequency: 2.4G & 5G

Wi-Fi Transmission Standard: 802.11ac

Wired Transfer Rate: 10/100/1000Mbps

Wireless Communication Standard: 802.11.ac

Wireless transmission rate: 1200M

With Modem Function: No

access point outdoor: high power wifi router

access point wifi Outdoor: long range outdoor wifi router

nano station: high speed wifi router

outdoor access point: Outdoor 5g router

outdoor access point wifi 6: outdoor router

outdoor ap: Outdoor 5G router

outdoor wifi antenna: outdoor wifi router repeater

router outdoor: wifi access point

semi_Choice: yes

wlan outdoor access point: 5g outdoor router

500mW Outdoor Wifi Router Signal Extender Wireless AP 2.4G&5.8G 1200Mbps Gigabit Wi-fi Ethernet Access Point AP Antenna

Difference:

WL-AP7202   1200Mbps  2.4 +5.8Ghz   2*5 External Antenna  48V poe Adapter       Gigabit Port   Support  120 Users  +

CF-EW71        300Mbps   2.4Ghz           2*5 External Antenna   48V Poe Adapter      Support  40 Users



Product Description

WL-AP7202 is a 1200Mbps outdoor high-power AP, using MT7621DAT+MT7613BEN+MT7603E chip solution, Equipped with dual-band PA power amplifier and 128MB large memory, it is an outdoor omnidirectional coverage AP product.



Product Feature

●Three-chip design, the product is stable and reliable;

●1200Mbps fast wireless rate;

●500mW transmit power, large area WIFI coverage;

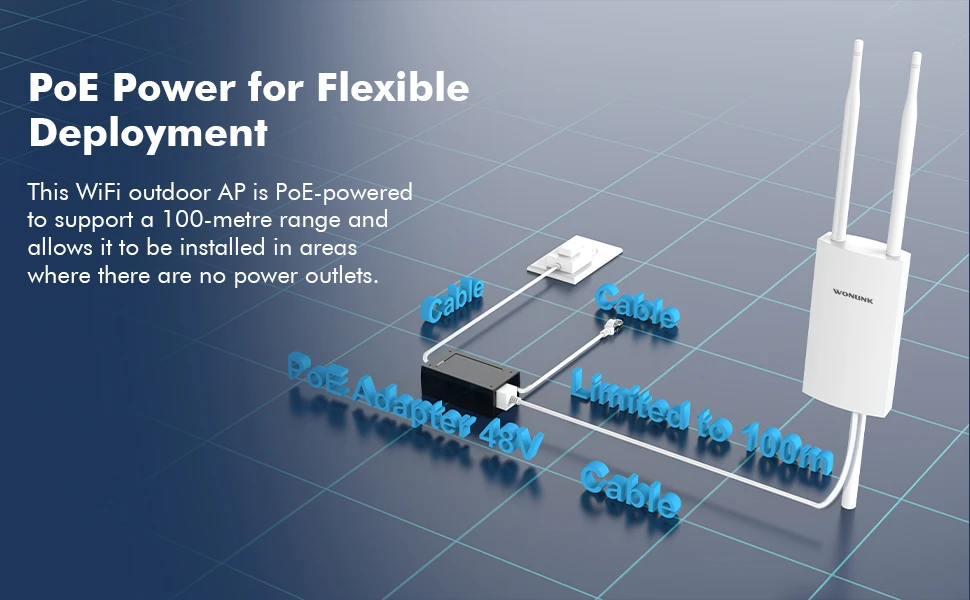

●Support POE network cable power supply, flexible layout;

2*5dBi dual-band omnidirectional antenna to improve signal transceiver performance;

● Dual-band is equipped with PA power amplifier chip, which increases power and makes the signal stronger than ordinary AP;

●Automatically adapt to the channel to ensure the stability and smoothness of the network;

● Power is adjustable to reduce mutual interference between APs;

●2.4GHz&5.8GHz dual frequency;

●Default fat AP mode, which can be switched to thin AP mode through the page, flexibly doing projects;

●Professional outdoor shell design;

●External waterproof antenna design;

●The indicator light can intuitively understand the working status;

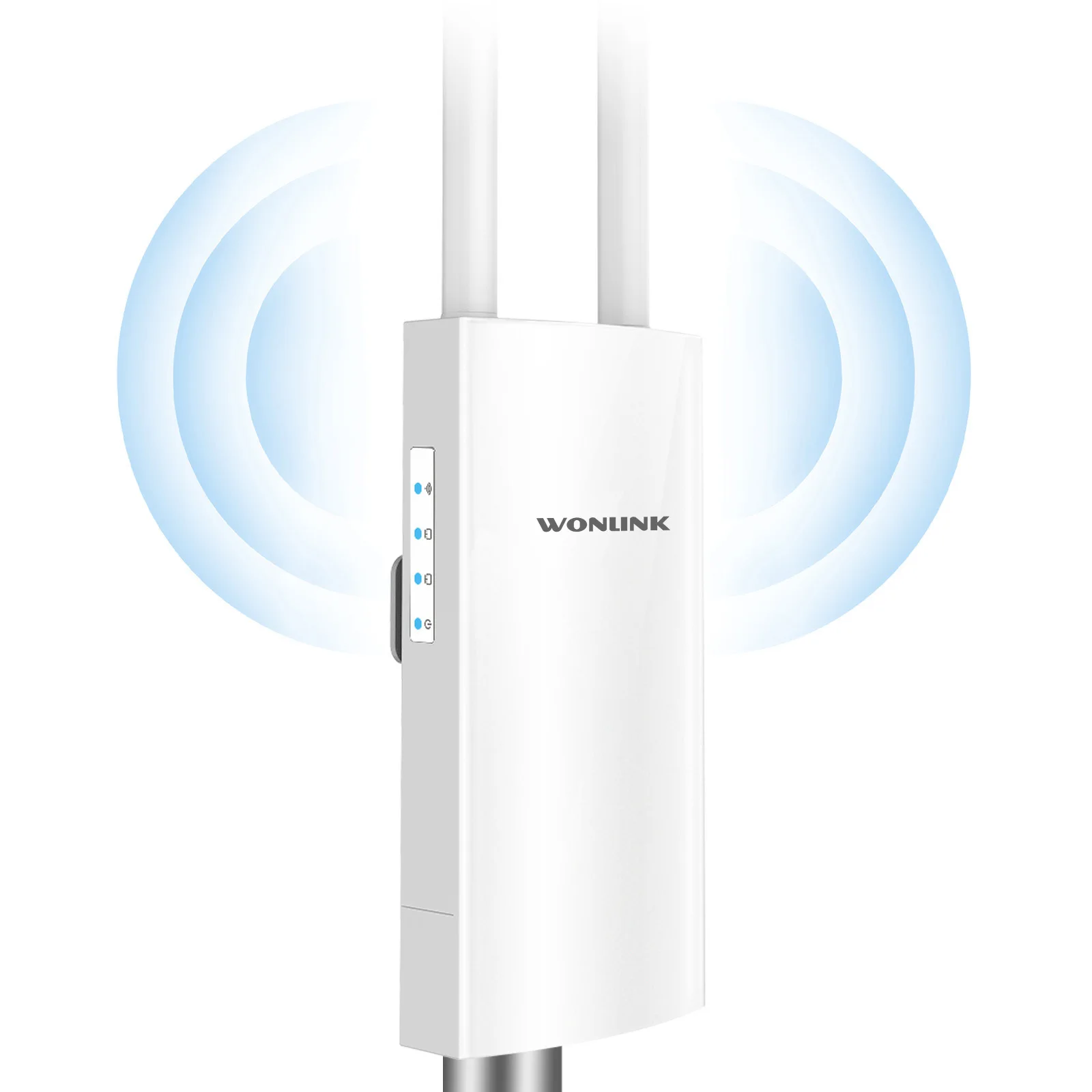

●Easy installation method, can be installed on pole and wall;





Product Performance Advantage
1200M dual frequency, fast and stable

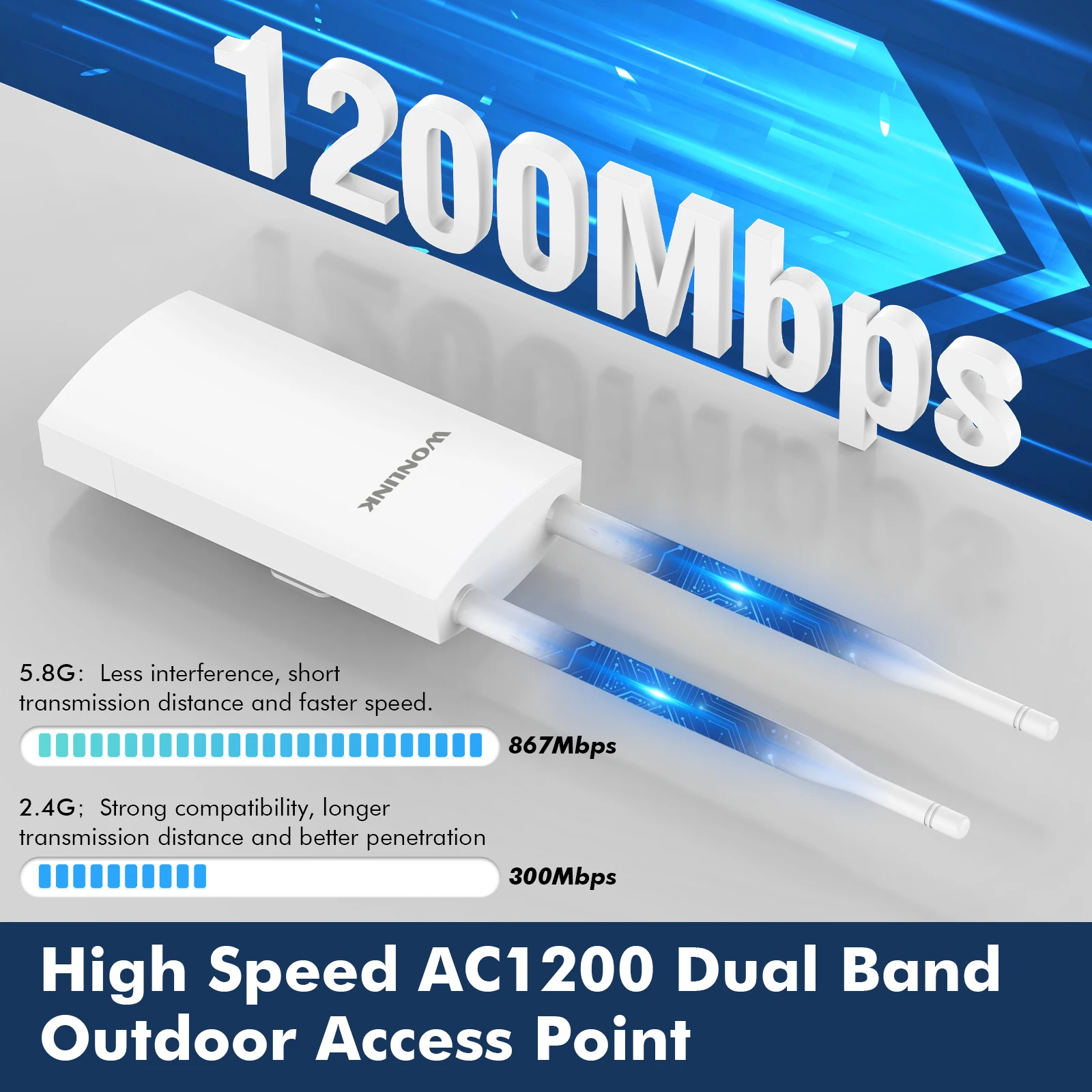

WL-AP7202 supports 1200Mbps fast wireless rate, can work in 2.4GHz&5.8GHz frequency band, 2.4GHz frequency band has strong diffraction power, 5.8GHz anti-interference is strong, providing users with fast, comprehensive and stable outdoor wireless network.



Three-chip design, stable and reliable products

WL-AP7202 adopts a three-chip solution, MT7621DAT + MT7613BEN + MT7603E chips, and the 2.4GHz&5.8GHz frequency band is equipped with a high-performance independent power amplifier circuit (PA: Power Amplifier), which improves the wireless transceiver performance, and the signal is higher than that of ordinary APs. stronger.







IP66 outdoor protection grade

WL-AP7202 supports IP66 protection level, which can effectively prevent the impact of bad weather such as wind, frost, rain and snow on the equipment, prevent the infiltration of dust and water droplets, and ensure that the equipment can run safely and stably in bad weather.





High gain omnidirectional antenna

WL-AP7202 is equipped with 2* 5dBi dual-band omnidirectional antenna, which supports 360° omnidirectional coverage, and fully meets the long-distance wireless coverage requirements of outdoor squares, stadiums, scenic spots, parks, playgrounds and other environments.









Analysis of product features

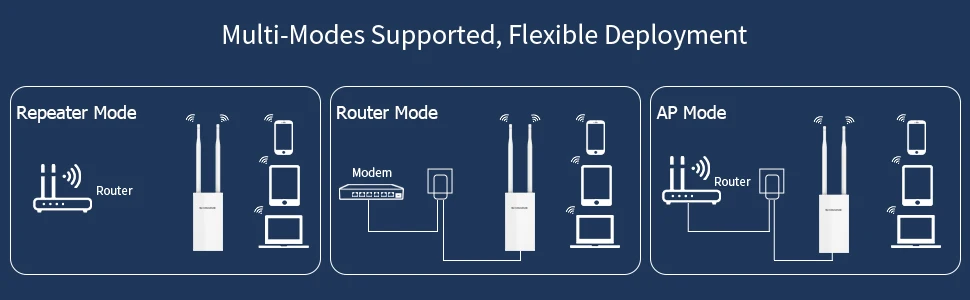

Ultra flexible working mode

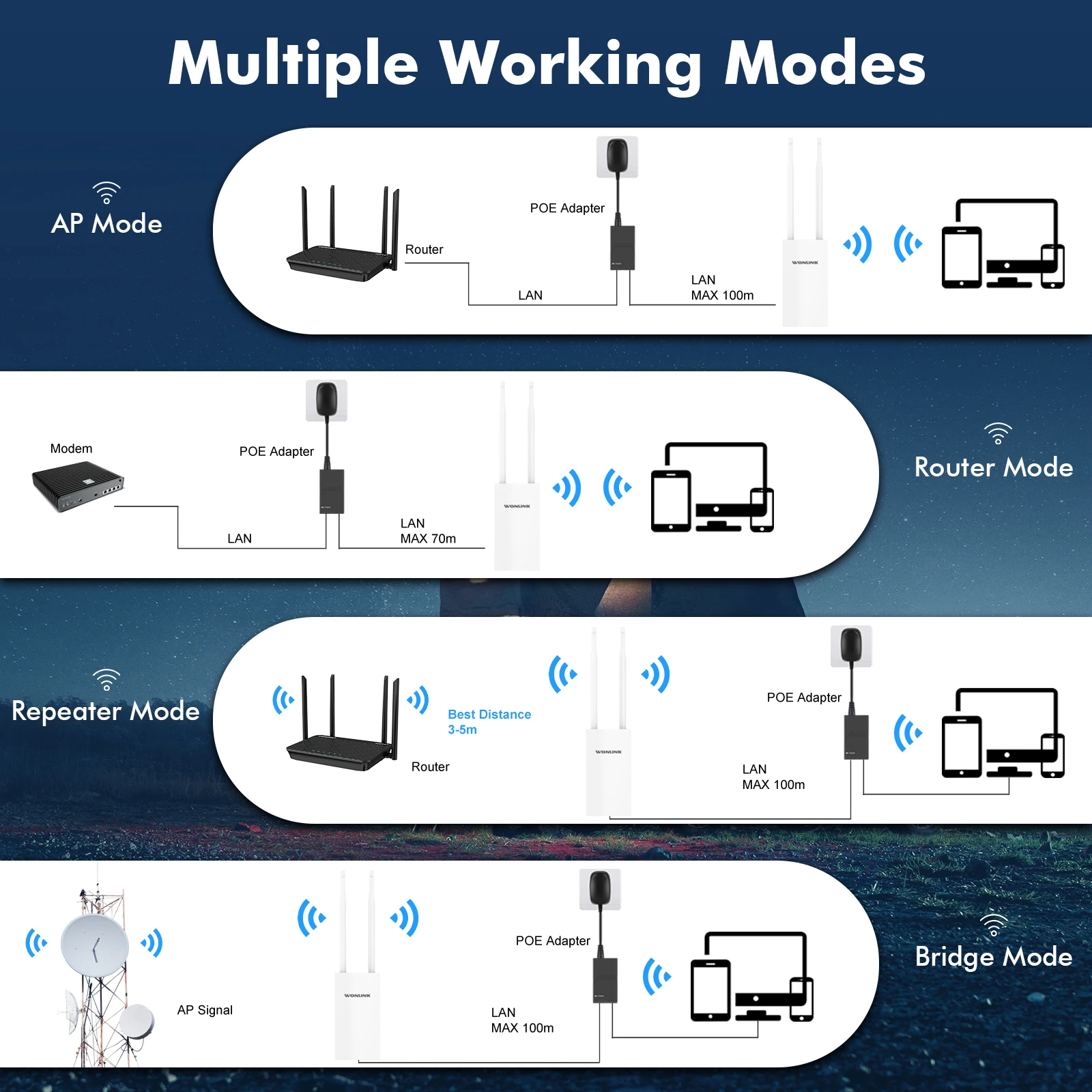

◆The product can support two working modes: Fat (fat) and Fit (thin), and customers in different industries can switch flexibly according to their networking needs. The device defaults to the fat AP mode. When the user's wireless information points are few, the AP device can work in the Fat (fat) mode and use it independently to form a network; when the customer's wireless information

When there are many online information points, the AP device is suitable for FitAP (thin) mode, and is used in conjunction with the COMFAST wireless controller and OrangeOS. .





Rich security features

◆Support PSK, WEB and other authentication methods, WEB security is realized through URL keyword filtering;

◆Support WPA (TKIP), WPA-PSK, WPA2, (AES) and other data encryption methods;

◆Support WeChat authentication and SMS authentication through the cooperation of COMFAST series wireless controllers;

◆Support attack defense in AP routing mode, mainly including DDOS defense against network attacks;





Energy Saving

◆High-performance power supply design ensures that the equipment can save energy when powered by 802.3af;







Rich management and maintenance functions, practicality and ease of use coexist

◆Network management function supports Telnet, SSH management, WEB management;

◆Support copy system time, support network time synchronization, time server settings;

◆Support timing restart function, automatic restart at 3:00 in the morning, which can automatically repair false faults of equipment and ensure stable operation of equipment;

◆Support automatic backup, the device will not lose configuration due to sudden power failure, which is more convenient for users;





Practical wireless LAN function

◆User restriction function: support user restriction based on SSID, flexibly allocate network resources;

◆High-band machine capacity: 40 users are recommended for 2.4GHz frequency band, 80 users are recommended for 5.8GHz frequency band, AP dual-band concurrent, high-band machine capacity ensures that multiple terminal devices can access the Internet at the same time;

◆Support seamless roaming, AP can achieve zero switching, no packet loss, users can not feel the switching work between APs in the process of moving;





Power linearly adjustable

◆When APs are deployed intensively, they will interfere with each other due to high power and affect the signal quality. This AP supports power adjustment, supports 0%, 12.5%, 25%, 50%, 75%, 100% multiple gears, users can adjust the power according to the actual situation to ensure the optimal signal quality;

Brand Name: WONLINK

Model Number: WL-AP7202

Chipset:MT7621DAT +MT7613BEN+MT7603E Chipset ,RAM : 128MB ; Flash : 16MB ;Power amplifier chip: 2.4G KCT8227D;

Optional configuration watchdog chip;；

Support the maximum number of end users ：120+ (Configure watchdog chip)
RF Parameters:200mW (23dBm)Transmitting Power

Antenna:2*5dBi dual band Omnidirectional antenna ；

Wi-Fi Transmission Rate: 2.4Ghz : 300Mbps , 5.8Ghz : 867Mbps ;

Maximum receiving sensitivity ：-96dBm

Working frequency ：802. 11ac/a/n: 5. 180GHz-5.825GHz , 802.11b/g/n : 2.412GHz-2.484GHz ;
Physical interface : 1*10/100/1000M LAN RJ45 Ethernet port (Support POE power supply) , 1*10/100/1000M WAN RJ45 Ethernet port (Support POE power supply)

1*RESET Button ;
Modulation Technology: 11b:DSS:CCK@5 .5/11Mbps,DQPSK@2Mbps,DBPSK@1Mbps ; 11a/g:OFDM:64QAM@48/54Mbps , 16QAM@24Mbps , QPSK@12/18Mbps,BPSK@6/9Mbps ; 11n :MIMO-OFDM:BPSK,QPSK,16QAM,64QAM ; 11ac : MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM ;

Indicator light ：Power / WAN / LAN / WiFi indicators ；

Power supply ：POE power supply Support 802.3af/802.3at standard (Up to 100M ）；48V 0.32A POE power adapter ;
Power Consumption:<13W
Lightning protection; IP66 Level
MTBF:>250000H
Installation method :Pole installation, wall installation；
Product Size: 353*85*43.5mm
Case:ABS Imported material + plastic shell ；
Working Environment:
Working Temperature: -40'C~55"C
Storage Temperature: -40"C~70'C
Working Humidity: 10%~90%RH No-condensing

Storage Humidity: 5%~95%RH No-condensing
Type: Wireless
Packing: Yes
colour:white

Application : Application for park / school / Driving school / Plant area / Shopping mall / Village

Package content:

With retail box

1*AP main body

1*48V POE power adapter

1*O type fixing loop

1*User manual

1*guarantee card
